Create a TimeXtender Deliver package
A TimeXtender Deliver package runs a deliver execution package in TimeXtender Data Integration, the step that publishes prepared data out to where it is consumed, such as a semantic model or a downstream database.
The package holds a reference to the TimeXtender Data Integration object, not a copy of it. Change what the execution package does in TimeXtender Data Integration and this package runs the new version, which is worth remembering before editing anything there that orchestration depends on.
Three stages, three package types. Deliver is the last of the three TimeXtender Data Integration stages, so it is normally the final one in a flow, and often the step immediately before a Power BI Refresh package. All three are configured the same way: select a TimeXtender Data Integration connection, then select the execution package to run.
Prerequisites
- A TimeXtender Data Integration connection in the workspace. Selecting it loads the execution packages available in that instance, so if the list is empty the connection is the place to look.
Create the package

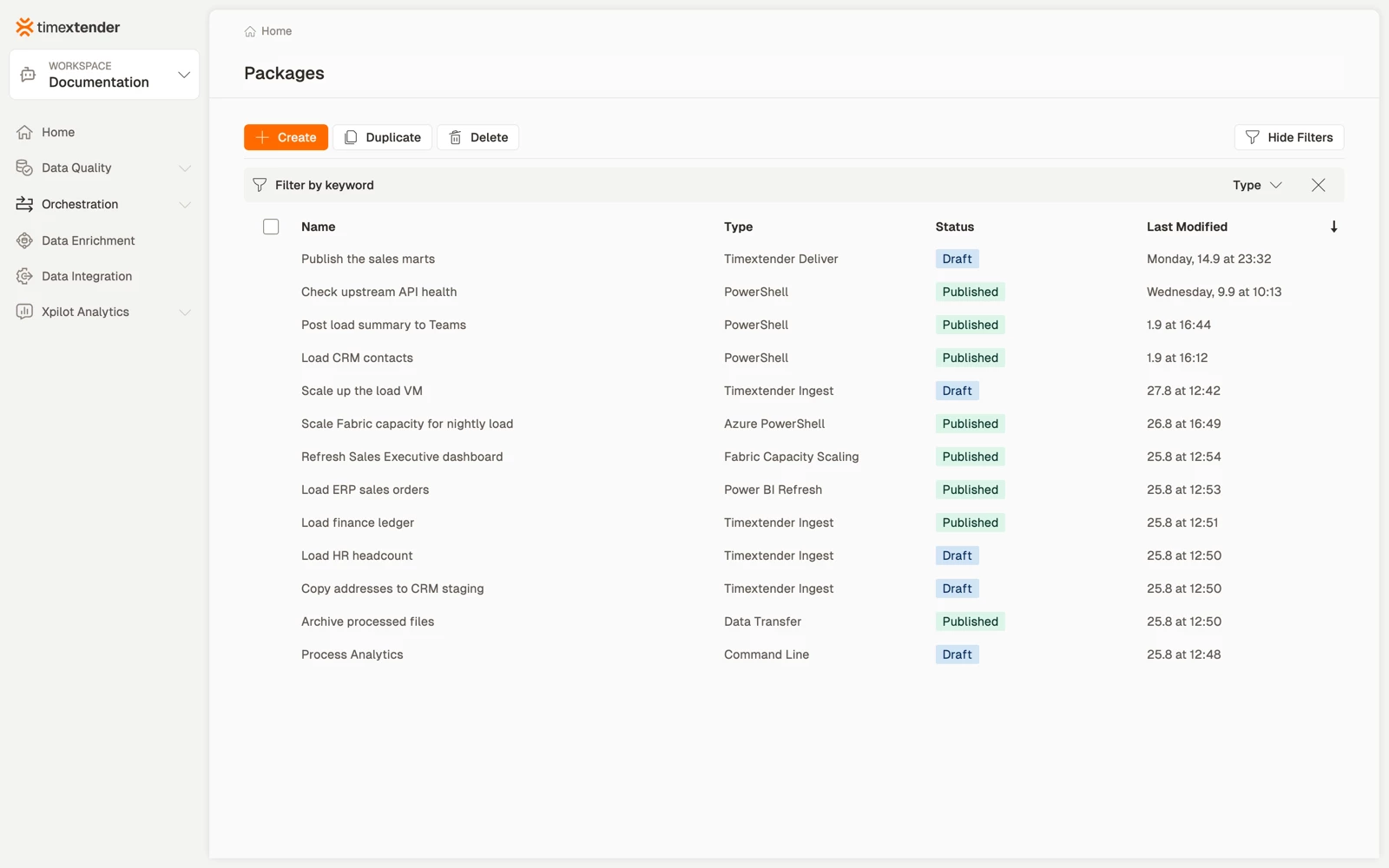

- Go to Orchestration > Packages and select Create.

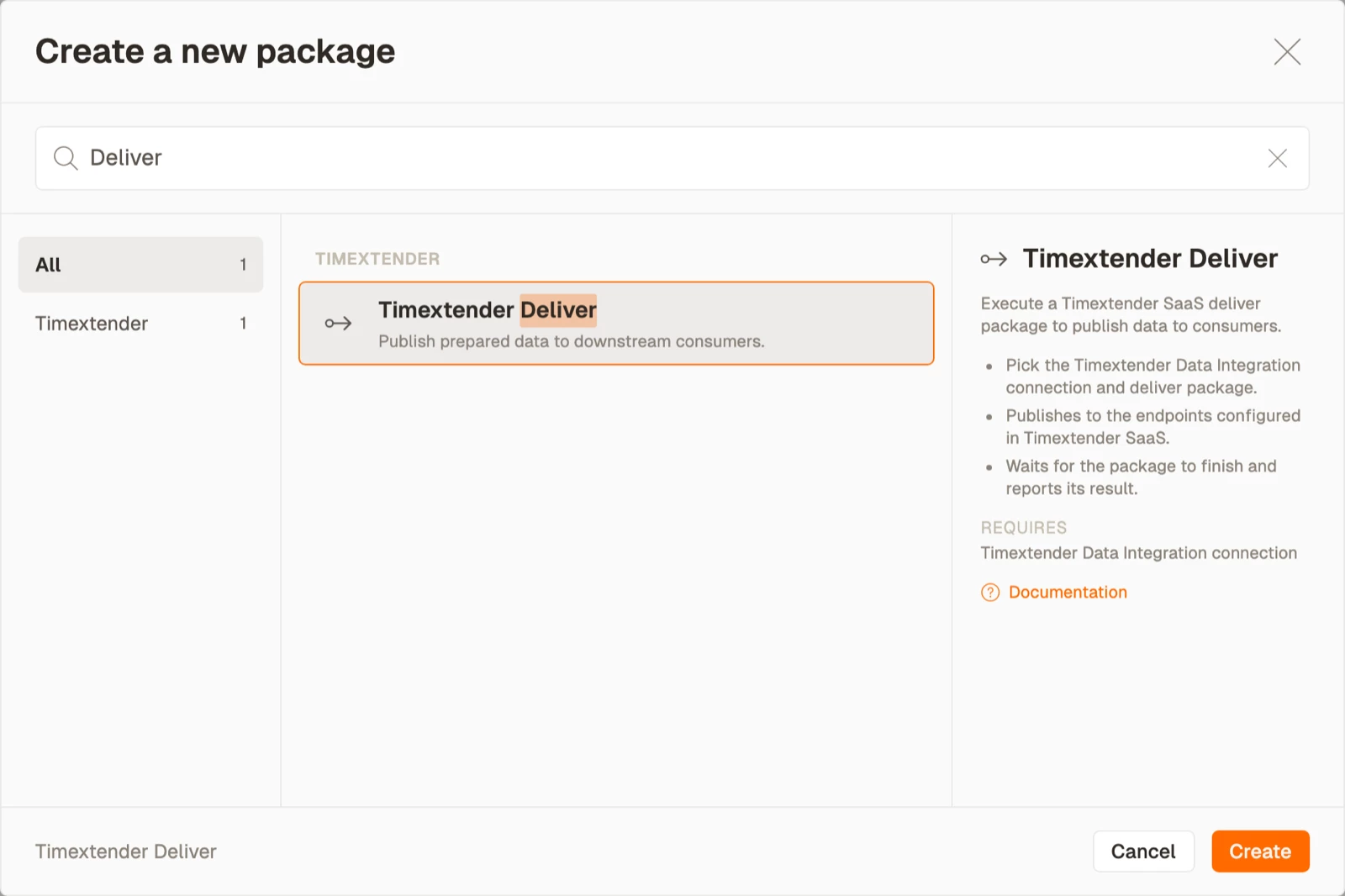

- Select Timextender Deliver package from the Timextender area, then select Create.

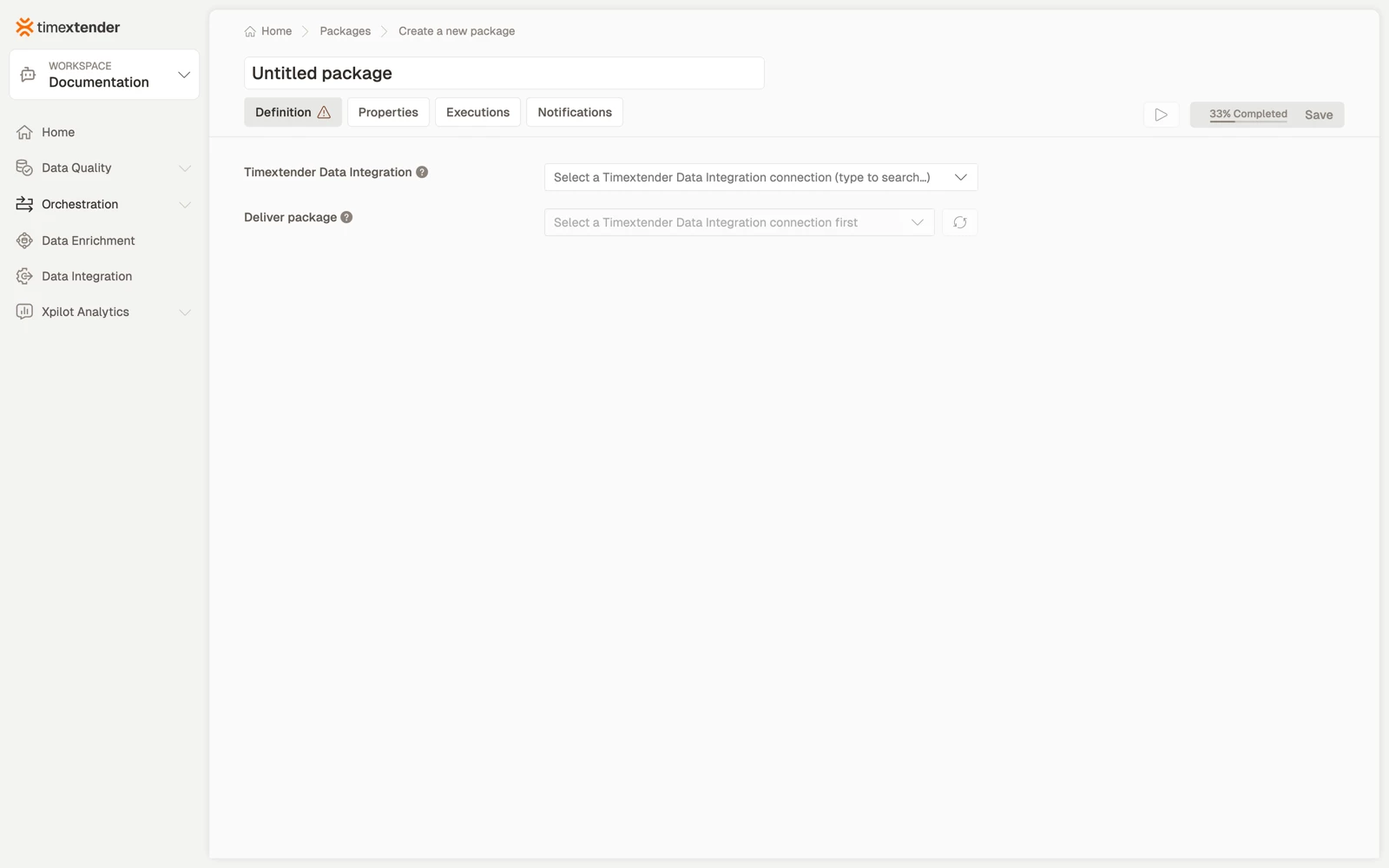

- Enter a name for the package. Name it for what it achieves, for example "Publish the sales marts".

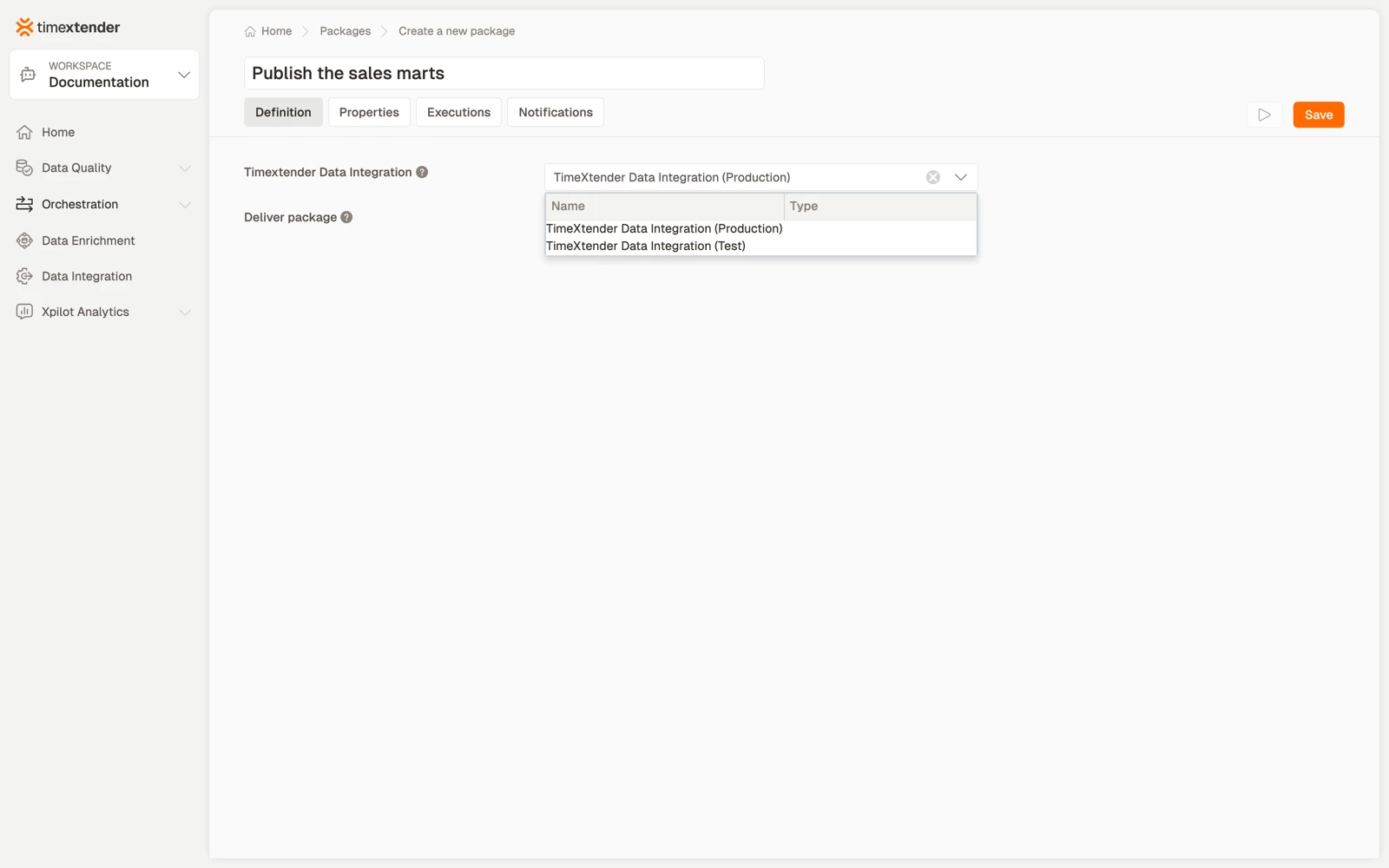

- Select the Data provider: Select the Timextender Data Integration connection to use.

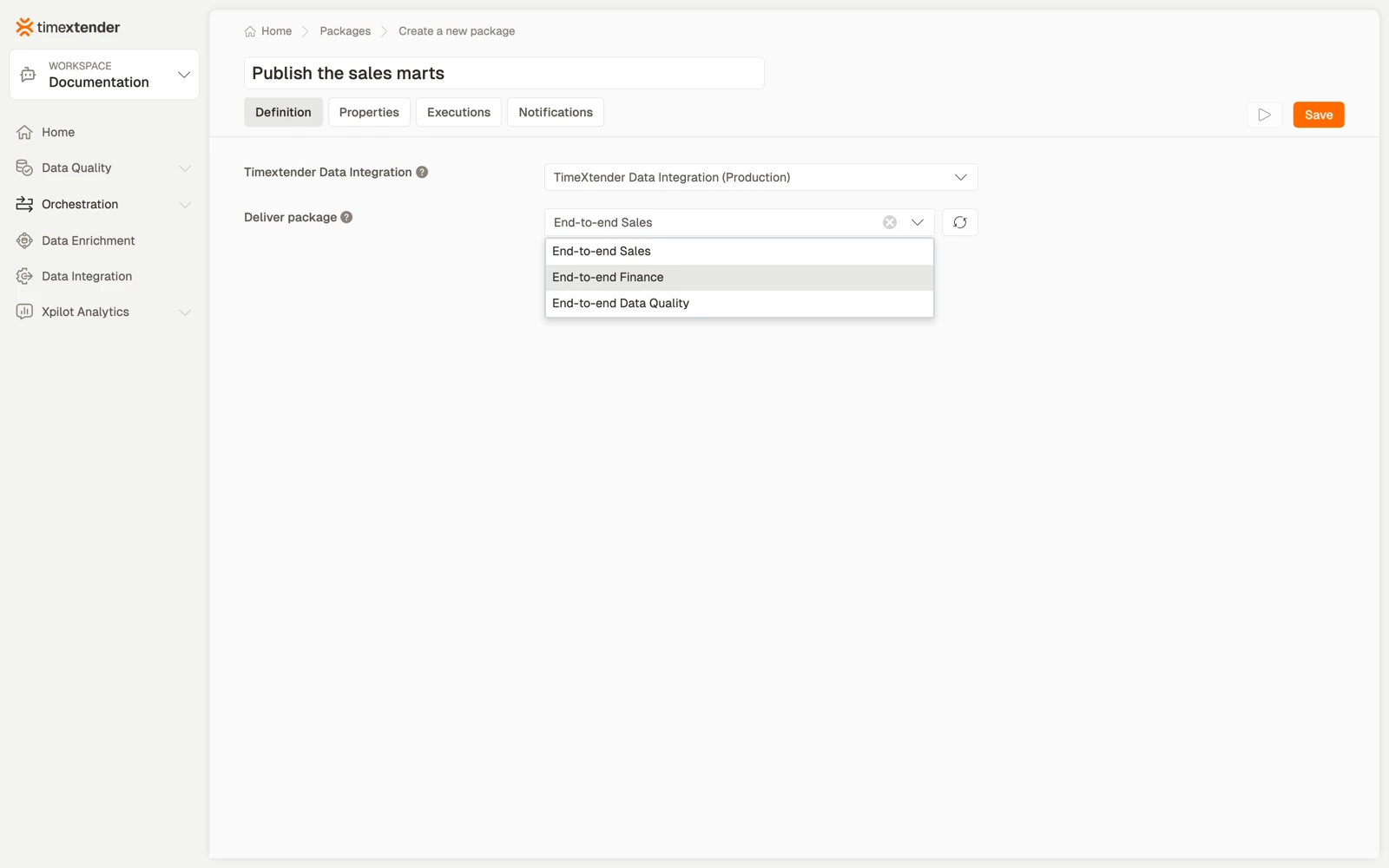

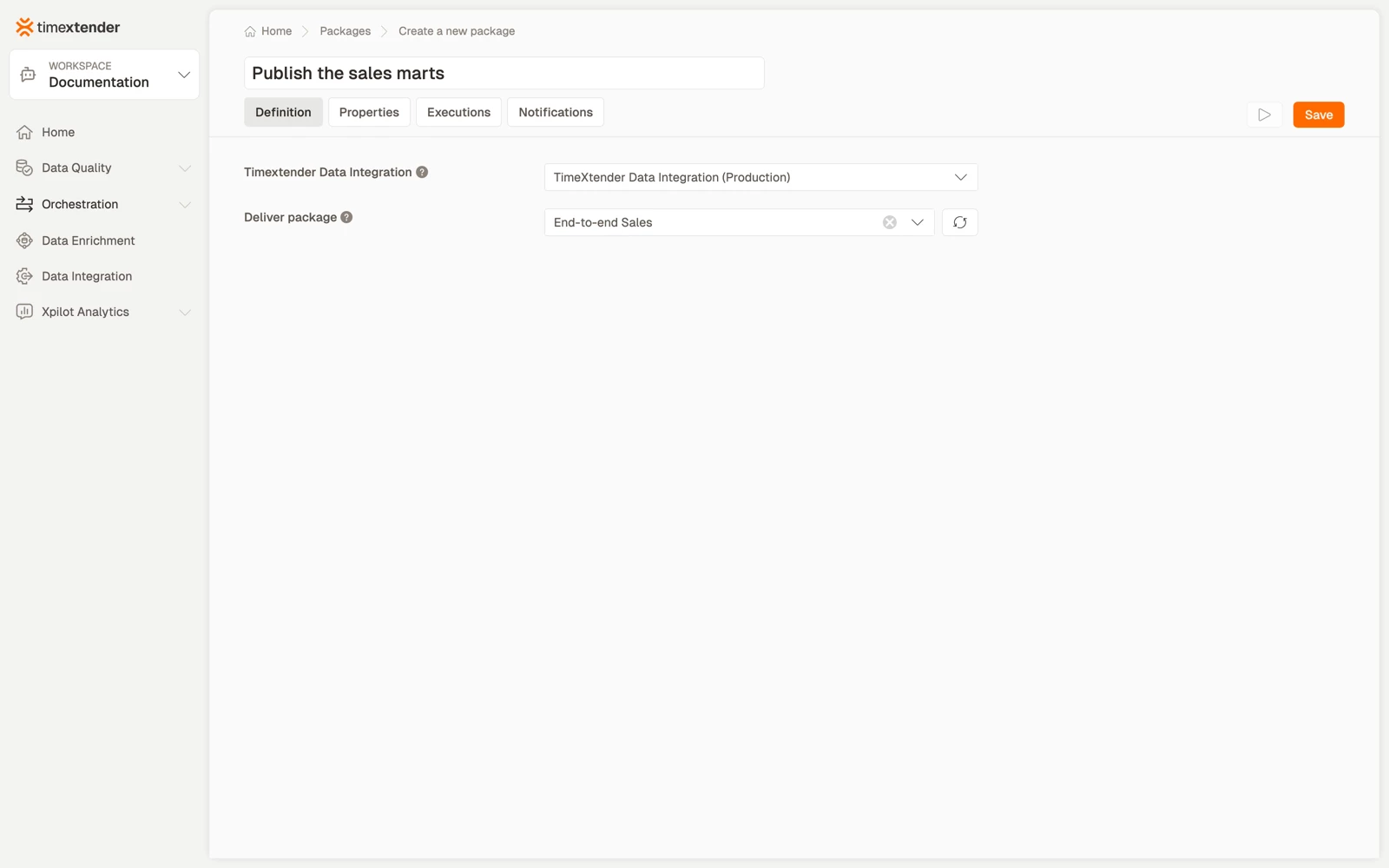

- Select the Execution package: The Timextender Data Integration deliver package to execute. The list is read from TimeXtender Data Integration for the selected connection, and the refresh button beside the field re-reads it, which you need after creating something in TimeXtender Data Integration while this page was open.

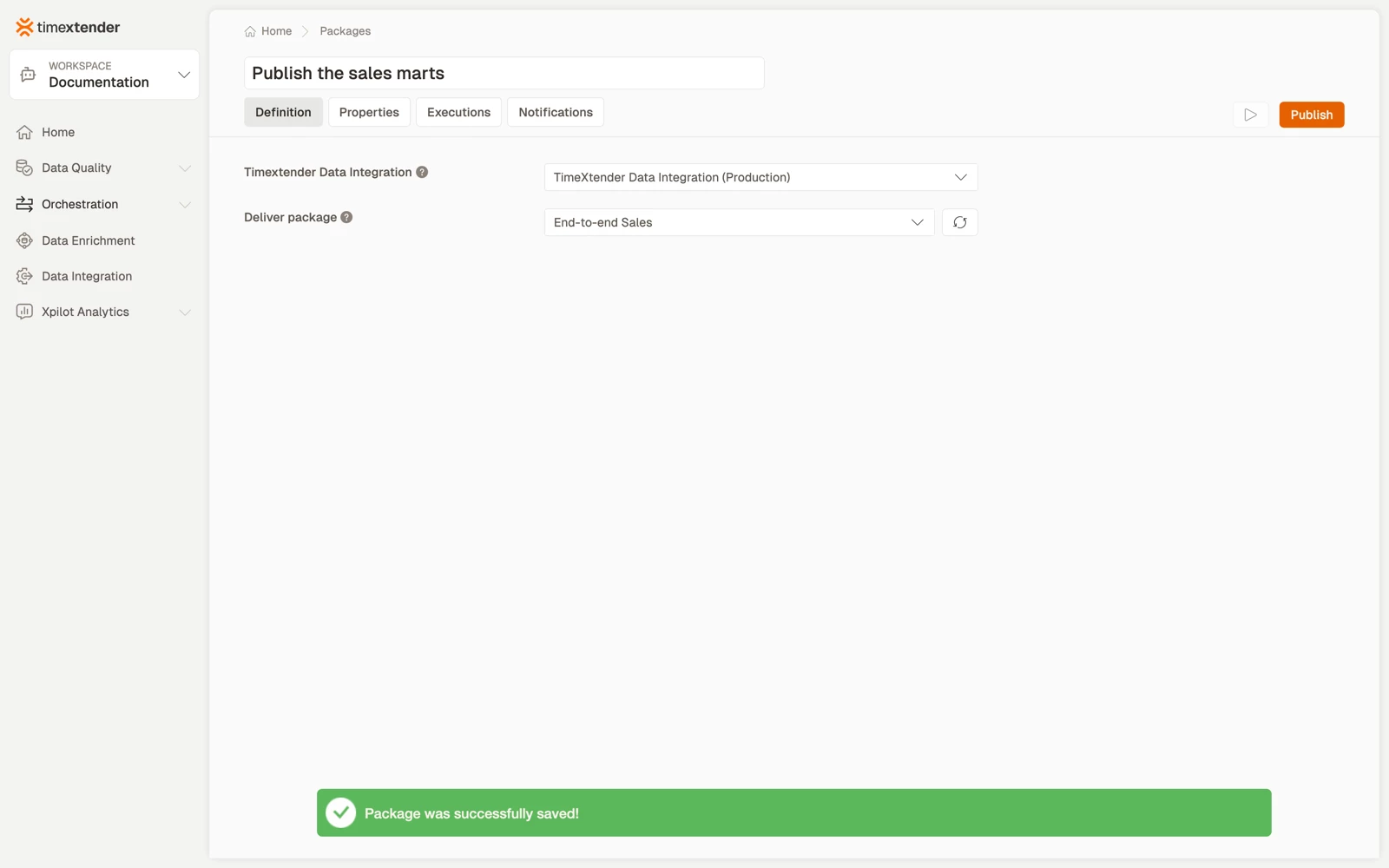

- Select Save.
Best practices
- One package per task. Chaining several TimeXtender Data Integration tasks inside one package is not possible, and it would hide which one failed. Use a process map to order them.
- Mirror the TimeXtender Data Integration pipeline in your process map. Ingest, then Prepare, then Deliver, with dependencies between them, so a failed ingest stops the transform instead of transforming yesterday's data.
- Name the package for the business outcome rather than the TimeXtender Data Integration object. "Load ERP Europe" reads better in a schedule than the task's internal name.
- Keep one connection per environment and select the right one per package, rather than repointing a single connection when promoting.
Troubleshooting
The task picker is empty, with a message about fetching instances. The data provider's instances have not been fetched and mapped yet. On the data provider, select Fetch Instances, map the instances, for example DEV and PROD, and save. The tasks then appear, each listed once, under the Instance Group column. The exact message is "Fetch and map instances on this Data Provider before adding packages."
The same task is listed several times, once per instance. The data provider's instances have not been mapped. Fetch and map its instances to collapse the duplicates. A package already bound on such a provider keeps its saved selection when you reopen it; it is never silently cleared.
The execution package list is empty. The connection cannot reach TimeXtender Data Integration, or its API key has been revoked. Check the data provider, then use the refresh button beside the field.
The list loads but the execution package you want is missing. It may not exist in the instance this connection points at, for example when the connection is for Test and the object was created in Production.
A package that worked now fails with an authentication error. The TimeXtender Data Integration API key on the data provider has expired or been rotated. Fix it on the data provider; packages pick up the new value without being edited.
The execution package was renamed in TimeXtender Data Integration. The package stores the reference it was configured with. Reopen the package, select it again from the refreshed list, and save.
Reference
Fields
| Field | Required | Notes |
|---|---|---|
| Data provider | Yes | Select the Timextender Data Integration connection to use. |
| Execution package | Yes | The Timextender Data Integration deliver package to execute. Has a refresh button. |
Validation: Please select a Timextender Data Integration connection, Please select a deliver package.
Behaviour worth knowing
The package stores the selected object's reference, not a copy of it. Changing what the task or package does in TimeXtender Data Integration changes what this package runs, with no edit here.
