Use Microsoft Fabric Lakehouse as Ingest Instance storage, and ingest data sources into Microsoft Fabric OneLake Delta Paquet format.

Prerequisites

1. Create an App Registration in the Azure Portal - It is recommended to use a dedicated app registration to ensure this account is the only one with access to the client credentials.
2. In Fabric/Power BI Admin Portal, enable “allow service principals to use Power BI APIs” as described here, in order to grant the app registration access to the Fabric workspace.
3. Create a workspace, or navigate to an existing workspace, in the Fabric portal and select Manage access. Grant the App Registration account Member access to the Fabric workspace.



4. Runtime version of the Fabric workspace needs to be set to 1.2. Navigate to your Fabric workspace and click Workspace settings, and under the Data Engineering/Science, click Spark settings and select Runtime version 1.2 and click Save.

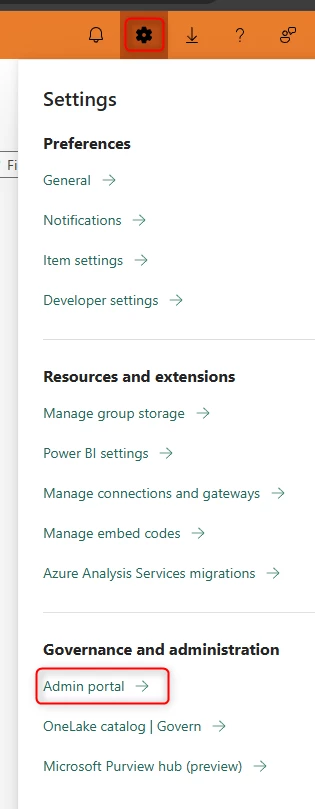

5. Go to the Admin Portal



6. Under Tenant scroll down and locate OneLake settings. Enable the following setting for Users to access data stored in OneLake with apps external to Fabric.

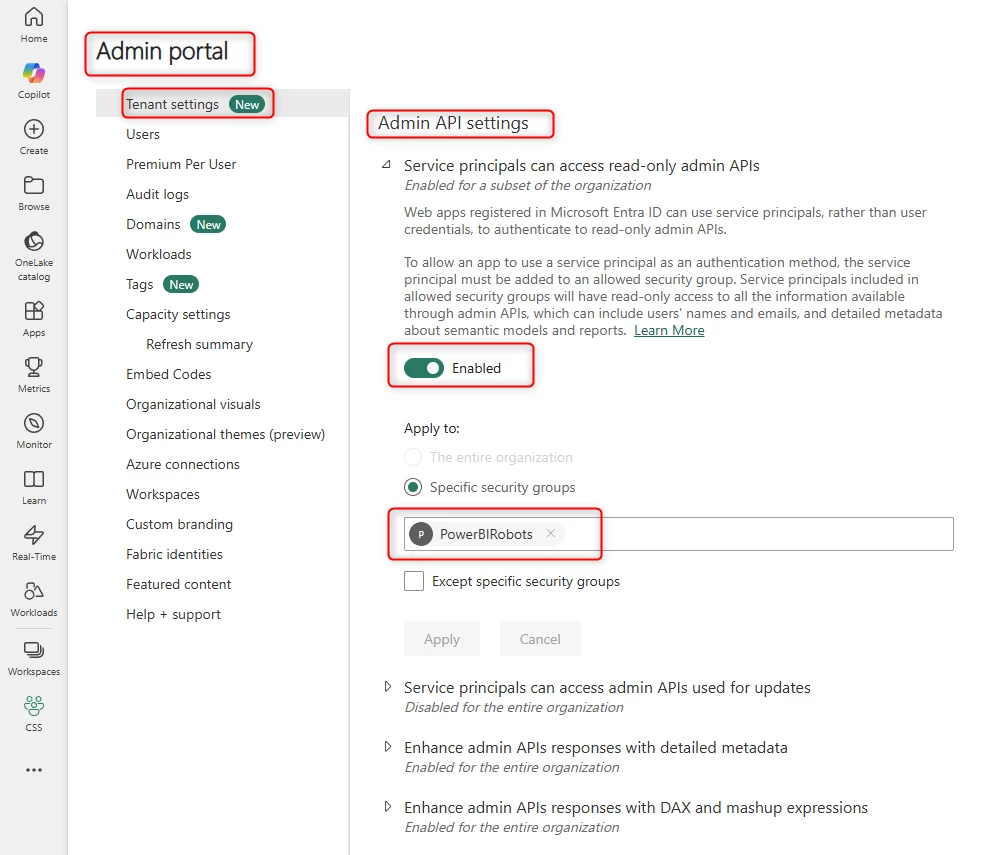

7. Under Tenant scroll down and locate Admin API settings. Make sure the Service principals can access read-only admin APIs is enabled and a security group is allowed.



   The security group we have added contains a list of service principals.

Add Ingest Instance with Fabric Lakehouse Storage

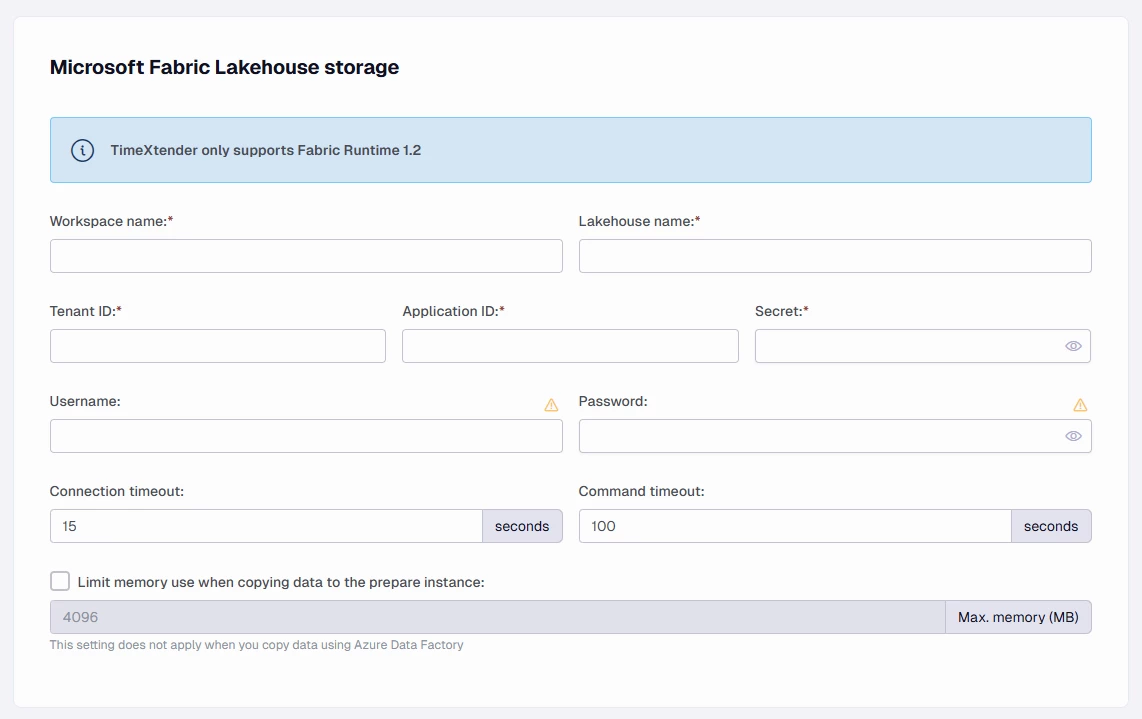

1. Add a new Ingest instance and select the storage type Microsoft Fabric Storage



2. Enter the workspace name for the existing Fabric workspace
3. Provide a name for the Lakehouse
4. Enter the Tenant id for the tenant associated with Fabric.
5. Enter the Application id for the App Registration.
6. Enter the Application Key (i.e. the client secret value) associated with the App Registration



Create the Fabric Lakehouse Ingest Instance Storage

1. Open the TimeXtender Data Integration (TDI) application and open the Ingest instance
2. If you haven't created the Lakehouse already, you can do it now by right-clicking the instance in the Solution Explorer and then clicking Edit Instance followed by Create Storage.



Objects created in Fabric

A notebook is created and run when a transfer task is executed for a data source in a Fabric Ingest instance. You can see these notebooks being created and run in within the Fabric portal under Monitor. The notebook creates a delta parquet table in the lakehouse (with the naming LoadTables_<data source name>_<uuid>), and creates a temporary parquet file in the lakehouse file folder. The data from the temporary parquet file is transferred to the delta parquet table in the lakehouse, and then the temporary parquet file is deleted. JSON files are also created in the lakehouse file folder to capture the data source metadata.
