Custom Fields

Custom fields are similar to other fields in a table, but are built from an empty field shell that employs various means to populate the field value, including transformations, scripting, and data copy. Custom fields have many use cases, including the ability to build a model of your setup in the data area before bringing in the data.

Use the following steps to add a custom field.

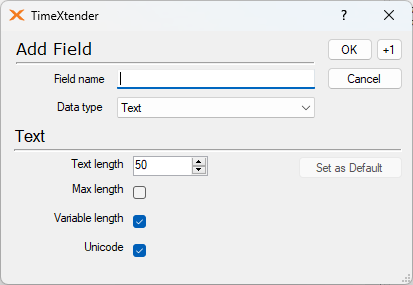

1. Right-click a table and select  Add Field



2. In the Field name box, enter a name for the field.
3. In the Data type list, select the data type for the field.
4. Define the selected data type attributes from the following options:

   Data Type	Attribute	Description
   Text	Text length	The maximum number of characters the field can contain.
   	Max length	The field can contain any amount of characters up to a storage size of 2 GB.
   	Variable length	The field can be of variable length
   	Unicode	Characters are encoded in Unicode
   Integer	Type	The size of the integer: bigint, int, smallint, tinyint
   Numeric	Numeric precision	The number of digits in the field
   	Numeric scale	The number of digits to the right of the decimal point
   	Mantissa bits	The precision of the floating point number if floating point is selected. 1-24 bits equals single precision, while 25-53 bits equals double precision
   	Floating point	The number is saved using floating point notation
   Binary	Length	The length of the binary field
   	Max length	The field can contain any amount of characters up to a storage size of 2 GB

5. (Optional) Click the Set as Default button to save the current settings as the defaults, which may save time later if there are subsequent new fields to be added that will be using the same settings. The Set as Default button will be disabled when the current settings already match the defaults.
6. Click OK to add the field and close the window, or click the +1 button to save the field and add another field.
