Arrays in JSON

Here is the whole code

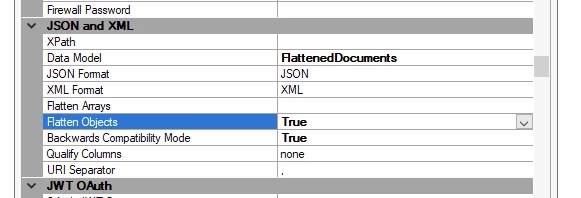

My datasource is also set to FlattenedDocuments:


<api:script xmlns:api="http://apiscript.com/ns?v1" xmlns:xs="http://www.w3.org/2001/XMLSchema">

  <!-- Schema information and column definitions for TimeXtender integration -->
  <api:info title="addendumGroups" desc="Generated schema file for TimeXtender." xmlns:other="http://apiscript.com/ns?v1">
    <!-- Attributes for the main JSON structure -->
	<attr name="projectRec" 							xs:type="string" readonly="false" 		other:xPath="DUMMY" />

<attr name="addendumGroupName"
      xs:type="string"
      readonly="false"
      other:xPath="/json/addendumGroupName" />




	</api:info>

  <!-- Base URL and settings -->
  <api:set attr="urlbase" value="https://URL" />

  <api:set attr="touchIn.DataModel" value="DOCUMENT" />
  <api:set attr="touchIn.JSONPath" value="$." />
  <api:set attr="touchIn.URI" value="[urlbase]/api/Project/GetProjects" />
  <api:set attr="touchIn.ElementMapPath#" value="/json/projectRec" />
  <api:set attr="touchIn.ElementMapName#" value="file_id" />

  <api:set attr="detailsIn.DataModel" value="FLATTENEDDOCUMENTS" />
  <api:set attr="detailsIn.EnablePaging" value="TRUE" />
<!--
<api:set attr="detailsIn.JSONPath"
         value="
				$;
				$.addendumValues.addendumGroups[*];
				$.addendumValues.addendumGroups[*].addendumGroupName;
				$.addendumValues.addendumGroups[*].rows[*];
				$.addendumValues.addendumGroups[*].rows[*].columns.*
				" />
-->

<api:set attr="detailsIn.JSONPath" value="$" />
<api:set attr="detailsIn.ElementMapPath#" value="$.addendumValues.addendumGroups[*]" />
<api:set attr="detailsIn.ElementMapName#" value="group_item" />






  <api:set attr="detailsIn.URITemplate" value="[urlbase]/api/Project/GetProjectByRec/{file_id}" />

  <!-- The GET method corresponds to SELECT. Here you can override the default processing of the SELECT statement. The results of processing are pushed to the schema's output. See SELECT Execution for more information. -->
	<api:script method="GET">
		<api:set attr="touchIn.URI" value="[touchIn.URI]" />
		<api:call op="jsonproviderGet" in="touchIn" out="touchOut">

 <!-- Clean projectRec -->
      <api:set attr="touchIn.cleanedProjectRec"
               value="[touchOut.file_id | trim()]" />

          <!-- Replace projectNumber in URI -->
          <api:set attr="detailsIn.URI"
                   value="[detailsIn.URITemplate | replace('{file_id}', [touchin.cleanedProjectRec])]" />
			<api:call op="jsonproviderGet" in="detailsIn" out="detailsOut">

		<api:set attr="out.projectRec"											value="[touchOut.file_id | allownull()]"/>


		<api:set attr="out.addendumGroupName" 									value="[detailsOut.group_item.addendumGroupName | allownull()]" />


		<!-- Push the final flattened record -->
		<api:push item="out" />
	  </api:call>
	</api:call>
  </api:script>

</api:script>

Hi ​@aftabp

If you use our own TX REST provider and set up Table Flattening, you can aggregate areas by using a asterisk *. Then it would be the areas below that were merged together.

Using that your root node would be.

addendumValues/addendumGroups/rows/columns

However, I don’t know how well it would work when your names for fields changes.

​@Thomas Lind
I dont know what you mean by usning my own TX REST provider.
Also, i dont mind spliting my code in mupltiple files, one for each addendumGroupName, as there are not more than 4

Hi ​@aftabp

If you use Relational instead of FlattenedDocuments without using RSD files, it will not attempt to merge it all into one, but create one table for each part.

You are using CData and RSD files. I suggest using this:

You can achieve the same result, possibly more like what you want using that.
