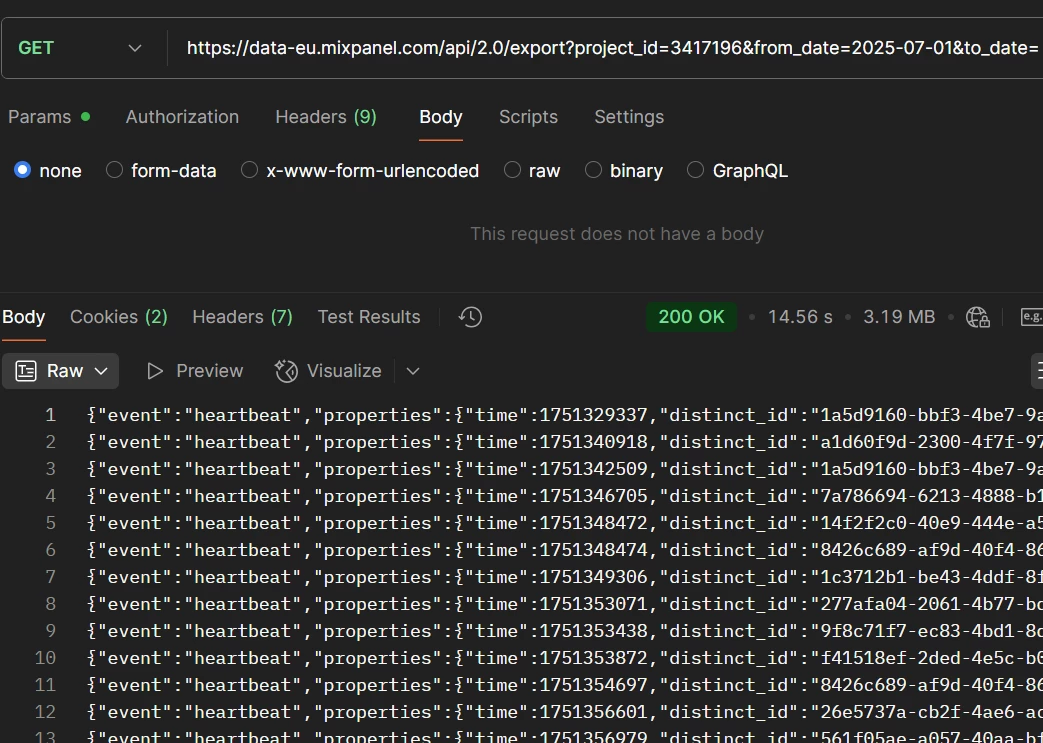

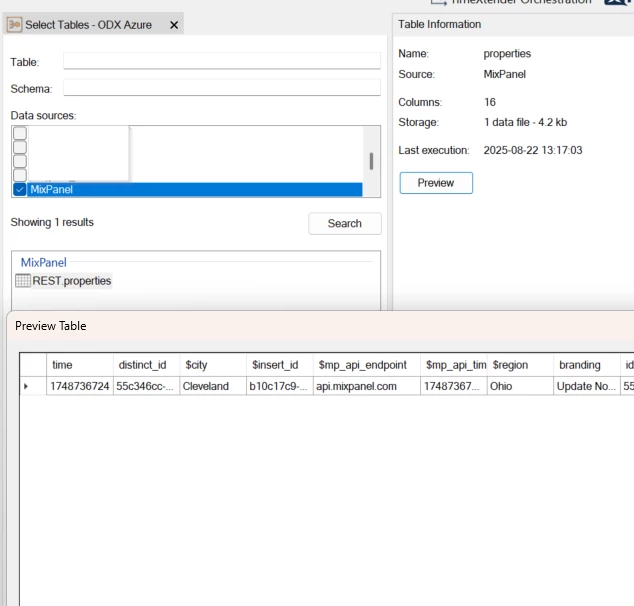

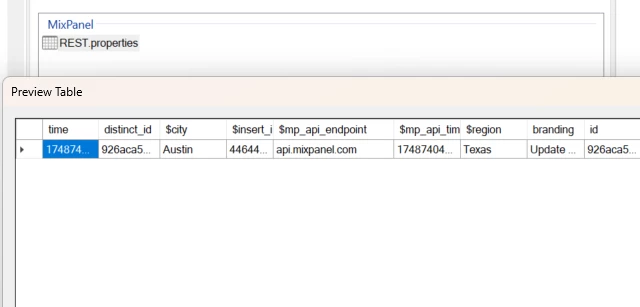

Hi, I’m trying to connect to a API using Timextender REST version 7.1.0.0 but my result is only one row of data. In Postman I get much more data. It might be because the API returns JSONL and TX tries to handle it as JSON. I’m trying to convert it to Text but it still doesn’t work.
Earlier I managed to complete the goal in Power Query even with pagination.
Now I’ve hit a brick wall and I need your help to proceed.
Here’s my connection profile:
{
"Name": "MixPanel",
"Description": "",
"Provider": {
"TemplateId": "d4aa4001-fd7b-4c65-b76d-f9710d551c1e",
"DisplayName": "TimeXtender REST",
"ProviderVersion": "7.1.0.0",
"X64BitVersion": true,
"ProviderType": 6
},
"RestProperties": {
"Pills": [
{
"Name": "Authentication",
"Description": "Configure authentication settings to securely access the API using tokens, keys, or other credentials.",
"Id": "rest-general-authentication",
"IsSelected": true
},
{
"Name": "Headers",
"Description": "Define custom request headers to include necessary metadata in API calls.",
"Id": "rest-general-headers",
"IsSelected": false
},
{
"Name": "Pagination",
"Description": "Pagination settings section configures how the connector handles paginated API responses.",
"Id": "rest-general-pagination",
"IsSelected": false
},
{
"Name": "Certificate",
"Description": "Certificates section allows configuration of client certificates used to authenticate secure connections to the REST API.",
"Id": "rest-general-certificate",
"IsSelected": false
},
{
"Name": "Connection variables",
"Description": "Define reusable connection variables to simplify configuration and maintain consistency across requests.",
"Id": "rest-general-global-values",
"IsSelected": false
},
{
"Name": "Table flattening",
"Description": "Create XSLT that will be applied to all endpoints, unless specifically disabled.",
"Id": "rest-general-table-flattening",
"IsSelected": false
},
{
"Name": "Caching",
"Description": "Configure caching settings to store API responses in memory or in a file.",
"Id": "rest-general-caching",
"IsSelected": false
},
{
"Name": "Request limits",
"Description": "Set limits on the number of API requests to control usage and prevent exceeding rate limits.",
"Id": "rest-general-request-limits",
"IsSelected": false
},
{
"Name": "Culture",
"Description": "Configure culture settings to control how data returned from the API is interpreted and parsed",
"Id": "rest-general-culture",
"IsSelected": false
},
{
"Name": "Misc",
"Description": "Configure miscellaneous settings, including request timeouts, retry attempts, and maximum concurrent tasks for optimized performance.",
"Id": "rest-general-misc",
"IsSelected": false
},
{
"Name": "Debug logging",
"Description": "Enable debug logging to capture detailed request and response data for troubleshooting and analysis.",
"Id": "rest-general-debug-logging",
"IsSelected": false
}
],
"EndpointPillsTemplate": "[{\"Name\":\"Data format\",\"Description\":\"Specify the format in which data should be sent or received, such as JSON, XML, or CSV.\",\"Id\":\"rest-endpoint-{{_id_}}-data-format\",\"IsSelected\":false},{\"Name\":\"Dynamic values\",\"Description\":\"Define dynamic values that can be evaluated or replaced at runtime, allowing for flexible and context-sensitive configurations.\",\"Id\":\"rest-endpoint-{{_id_}}-dynamic-values\",\"IsSelected\":false},{\"Name\":\"Query parameters\",\"Description\":\"Define query parameters to customize API requests by filtering, sorting, or modifying data retrieval.\",\"Id\":\"rest-endpoint-{{_id_}}-query-parameters\",\"IsSelected\":false},{\"Name\":\"Table flattening\",\"Description\":\"Define an XSLT transformation to flatten nested table structures into a simplified format for easier processing.\",\"Id\":\"rest-endpoint-{{_id_}}-table-flattening\",\"IsSelected\":false},{\"Name\":\"HTTP request\",\"Description\":\"Specify the HTTP method (e.g., GET, POST, PUT) and define the request body or pagination replace request body for sending data to the API when applicable.\",\"Id\":\"rest-endpoint-{{_id_}}-http-request\",\"IsSelected\":false},{\"Name\":\"Search and replace\",\"Description\":\"Define search and replace patterns to modify request or response data by finding specific values and substituting them with new ones.\",\"Id\":\"rest-endpoint-{{_id_}}-search-replace\",\"IsSelected\":false},{\"Name\":\"Override headers\",\"Description\":\"Customize request headers to override default settings, allowing for manual specification of header values for specific requests.\",\"Id\":\"rest-endpoint-{{_id_}}-override-headers\",\"IsSelected\":false},{\"Name\":\"Override pagination\",\"Description\":\"Customize pagination settings to override default behavior.\",\"Id\":\"rest-endpoint-{{_id_}}-override-pagination\",\"IsSelected\":false},{\"Name\":\"Misc\",\"Description\":\"Configure additional settings, including using the endpoint name as the schema name, treating empty fields as null, and performing an exhaustive metadata scan for comprehensive data retrieval.\",\"Id\":\"rest-endpoint-{{_id_}}-misc\",\"IsSelected\":false},{\"Name\":\"Override caching\",\"Description\":\"Customize caching settings to override default behavior.\",\"Id\":\"rest-endpoint-{{_id_}}-override-caching\",\"IsSelected\":false},{\"Name\":\"Delay\",\"Description\":\"Set a delay between API requests to control the timing and prevent overloading the server or exceeding rate limits.\",\"Id\":\"rest-endpoint-{{_id_}}-delay\",\"IsSelected\":false}]",
"IsLegacyConfiguration": false,
"BaseUrl": "https://data-eu.mixpanel.com/api/2.0",
"BaseUrlIsHidden": false,
"AuthenticationTypeIsHardCoded": false,
"AuthenticationConfiguration": {
"AuthenticationType": 2,
"BasicAuthentication": {
"Username": "TBDVOX.cb0390.mp-service-account",
"Password": null,
"PasswordChanged": false
},
"BearerToken": null,
"OAuth": {
"AccessUrl": null,
"RefreshTokenWorkingDirectory": null,
"InitialAccessToken": null,
"HeaderPrefixForBearer": null,
"InitialAccessTokenCreatedUnixTimestampSeconds": null,
"InitialAccessTokenExpiresInSeconds": null,
"SendRequestAs": 0,
"PassAuthorizationTokenIn": 0,
"Parameters": []
},
"AuthenticationEndpoint": {
"EndpointName": null,
"AuthenticationEndpointData": [],
"ManipulationQuery": null,
"ApplyAsHeaders": [],
"ApplyAsQueryParameters": [],
"ApplyAsDynamicValues": false,
"Behavior": 0,
"RunEveryXMinutes": null
}
},
"Headers": [],
"PaginationIsHidden": false,
"PaginationIsEnabled": false,
"PaginationConfiguration": {
"MaxNumberOfPages": null,
"Parameters": [],
"QueryExecutionTarget": {
"TargetType": 0,
"CustomSqlConnectionString": null,
"TimeoutInSeconds": 30,
"Username": null,
"Password": null,
"PasswordChanged": false
},
"Query": null,
"ReplaceUrl": false,
"ReplacedUrl": null,
"ReplacePostBody": false,
"AddAsQueryParameter": false,
"QueryParameters": []
},
"Certificate": {
"CertificateFileType": 0,
"CertificatePassword": null,
"PasswordChanged": false,
"CertificatePath": null,
"CertificatePrivateKeyPath": null
},
"TimeoutInSeconds": 30,
"MaximumRetryAttempts": 3,
"RequestLimitIsHidden": false,
"RequestLimitPerSecond": 0,
"RequestLimitPerMinute": 0,
"RequestLimitPerHour": 0,
"RequestLimitPerDay": 0,
"CachingOptions": {
"CacheType": 0,
"CachePath": null
},
"GlobalValues": [],
"MaxConcurrentTasks": 4,
"Endpoints": [
{
"Pills": [
{
"Name": "Data format",
"Description": "Specify the format in which data should be sent or received, such as JSON, XML, or CSV.",
"Id": "rest-endpoint-ProjectID-data-format",
"IsSelected": true
},
{
"Name": "Dynamic values",
"Description": "Define dynamic values that can be evaluated or replaced at runtime, allowing for flexible and context-sensitive configurations.",
"Id": "rest-endpoint-ProjectID-dynamic-values",
"IsSelected": false
},
{
"Name": "Query parameters",
"Description": "Define query parameters to customize API requests by filtering, sorting, or modifying data retrieval.",
"Id": "rest-endpoint-ProjectID-query-parameters",
"IsSelected": true
},
{
"Name": "Table flattening",
"Description": "Define an XSLT transformation to flatten nested table structures into a simplified format for easier processing.",
"Id": "rest-endpoint-ProjectID-table-flattening",
"IsSelected": false
},
{
"Name": "HTTP request",
"Description": "Specify the HTTP method (e.g., GET, POST, PUT) and define the request body or pagination replace request body for sending data to the API when applicable.",
"Id": "rest-endpoint-ProjectID-http-request",
"IsSelected": false
},
{
"Name": "Search and replace",
"Description": "Define search and replace patterns to modify request or response data by finding specific values and substituting them with new ones.",
"Id": "rest-endpoint-ProjectID-search-replace",
"IsSelected": true
},
{
"Name": "Override headers",
"Description": "Customize request headers to override default settings, allowing for manual specification of header values for specific requests.",
"Id": "rest-endpoint-ProjectID-override-headers",
"IsSelected": true
},
{
"Name": "Override pagination",
"Description": "Customize pagination settings to override default behavior.",
"Id": "rest-endpoint-ProjectID-override-pagination",
"IsSelected": false
},
{
"Name": "Misc",
"Description": "Configure additional settings, including using the endpoint name as the schema name, treating empty fields as null, and performing an exhaustive metadata scan for comprehensive data retrieval.",
"Id": "rest-endpoint-ProjectID-misc",
"IsSelected": false
},
{
"Name": "Override caching",
"Description": "Customize caching settings to override default behavior.",
"Id": "rest-endpoint-ProjectID-override-caching",
"IsSelected": false
},
{
"Name": "Delay",
"Description": "Set a delay between API requests to control the timing and prevent overloading the server or exceeding rate limits.",
"Id": "rest-endpoint-ProjectID-delay",
"IsSelected": false
}
],
"HtmlIdName": "ProjectID",
"Name": "ProjectID",
"Description": null,
"Path": "export",
"HttpMethod": "GET",
"PostBody": null,
"PaginationPostBody": null,
"PerformExhaustiveMetaDataScan": false,
"IsDisabled": false,
"UseEndpointNameAsSchemaName": false,
"EmptyFieldsAsNull": false,
"OnlyUseEndpointTableFlattenings": false,
"QueryParameters": [
{
"Name": "project_id",
"Value": "3417196",
"Description": null,
"IsRequired": false,
"IsSensitive": false,
"ValueChanged": false
},
{
"Name": "from_date",
"Value": "2025-06-01",
"Description": null,
"IsRequired": false,
"IsSensitive": false,
"ValueChanged": false
},
{
"Name": "to_date",
"Value": "2025-06-02",
"Description": null,
"IsRequired": false,
"IsSensitive": false,
"ValueChanged": false
}
],
"CustomInputFields": {},
"CustomInputFieldsAdvanced": {},
"DataFormat": 4,
"CsvSettings": {
"HasHeaderRecord": true,
"Delimiter": null,
"Quote": null
},
"OnlyListFlattenedTables": false,
"TableFlatteningConfigurations": [],
"DynamicValuesIsEnabled": false,
"DynamicValuesConfiguration": {
"DynamicValuesSource": 1,
"EndpointTable": {
"EndpointName": null,
"TableName": null
},
"QueryExecutionTarget": {
"TargetType": 0,
"CustomSqlConnectionString": null,
"TimeoutInSeconds": 30,
"Username": null,
"Password": null,
"PasswordChanged": false
},
"Query": null,
"SelectedEndpointWithTableFlattenings": []
},
"OverriddenPaginationIsEnabled": false,
"OverriddenCachingOptionsIsEnabled": false,
"OverriddenHeadersIsEnabled": true,
"OverriddenPaginationConfiguration": {
"MaxNumberOfPages": null,
"Parameters": [],
"QueryExecutionTarget": {
"TargetType": 0,
"CustomSqlConnectionString": null,
"TimeoutInSeconds": 30,
"Username": null,
"Password": null,
"PasswordChanged": false
},
"Query": null,
"ReplaceUrl": false,
"ReplacedUrl": null,
"ReplacePostBody": false,
"AddAsQueryParameter": false,
"QueryParameters": []
},
"OverriddenCachingOptions": {
"CacheType": 0,
"CachePath": null
},
"OverriddenHeaders": [
{
"Name": "Accept",
"Value": "text/plain",
"IsSensitive": false,
"ValueChanged": false
},
{
"Name": "Accept-Encoding",
"Value": "gzip",
"IsSensitive": false,
"ValueChanged": false
}
],
"DelayBetweenRequestsInMilliseconds": null,
"DelayBeforeFirstRequestInMilliseconds": null,
"SearchReplaces": [
{
"Search": "}\\r\\n{",
"Replace": "}\\r\\n|||ROW|||\\r\\n{"
},
{
"Search": "}\\n{",
"Replace": "}\\n|||ROW|||\\n{"
}
]
}
],
"CustomInputFields": {},
"CustomInputFieldsAdvanced": {},
"CultureName": null,
"DebugLoggingIsEnabled": null,
"DebugLoggingFilePath": null,
"TableFlatteningConfigurations": []
}
}
