I need some help retrieving JSON data via GraphQl.
When testing the connection in TimeXtender, I got a "Connection OK" message.
After Synchronizing Data Source in TimeXtender an error message is displayed :
System.Data.CData.GraphQL.GraphQLDataReader ExecuteDataReader(System.Data.CommandBehavior)
[500] Could not execute the specified command: The defined query is null. : "UserViews"."query"
System.Data.CData.GraphQL.GraphQLDataReader ExecuteDataReader(System.Data.CommandBehavior)
[500] Could not execute the specified command: The defined query is null. : "UserViews"."variables"
==========================================================================================================================
We received the following connection string from our IT department
--------------------------------------------------------------------------------------------------------------------------
curl --location 'https://xxxxxxxxxx.com/um/users/graphql' \
--header 'accept: */*' \
--header 'Referer: http://localhost:7000/um' \
--header 'User-Agent: Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/81.0.4044.113 Safari/537.36' \
--header 'content-type: application/json' \
--header 'Authorization: Bearer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx' \
--data '{"query":"query ModifiedUsers($lastCheck: String!, $from: Int = 0, $size: Int = 20) {modifiedUsers(lastCheck: $lastCheck, from: $from, size: $size)\r\n{\r\n users {\r\n id\r\n login\r\n createdBy\r\n updatedBy\r\n created\r\n updated\r\n principalADName\r\n systemAccount\r\n authType\r\n userDetail {\r\n firstName\r\n lastName\r\n email\r\n language {\r\n id\r\n name }\r\n country { \r\n id\r\n name\r\n }\r\n }\r\n userApplicationAttributesValues {\r\n userApplicationAttributeId\r\n value\r\n }\r\n authorizations {\r\n applicationInstance {\r\n id\r\n name\r\n }\r\n applicationHierarchies {\r\n applicationHierarchy {\r\n id\r\n label\r\n }\r\n attributeValues {\r\n id\r\n value\r\n valueName\r\n parentId\r\n deleted\r\n }\r\n }\r\n\r\n }\r\n }, total\r\n }\r\n }\r\n","variables":{"lastCheck":"2025-04-01T10:15:30Z","from":0,"size":10}}'
==========================================================================================================================
TimeXtender 20.10.52.64 (on prem)
--------------------------------------------------------------------------------------------------------------------------
Connector:
CData ADO.NET Provider for GraphQl 2023 (23.0.8669.0)

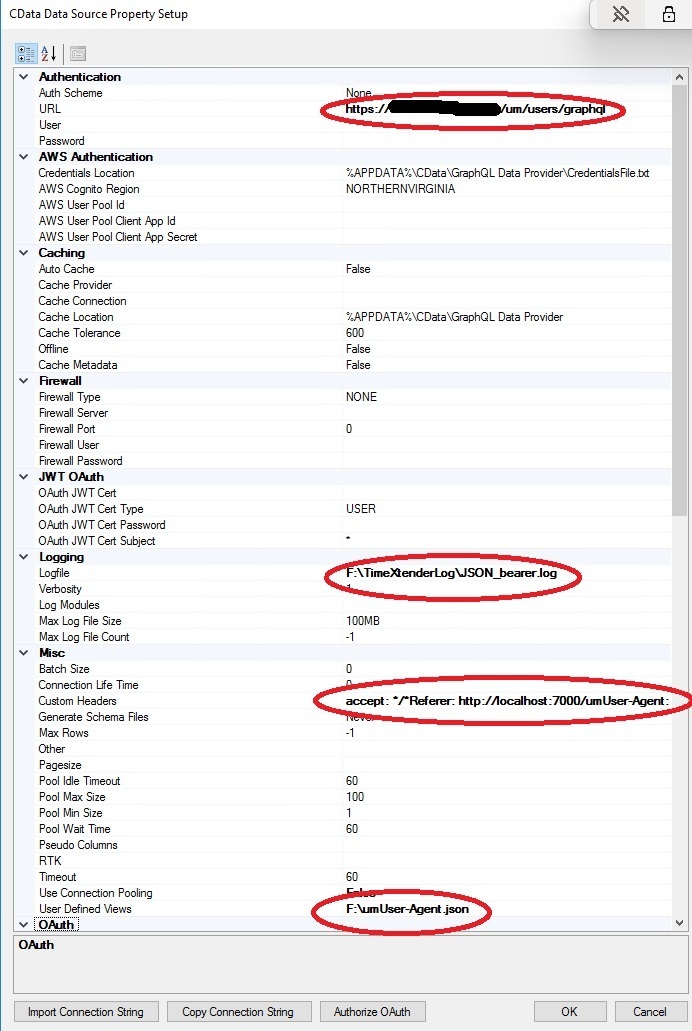

Settings:
URL:
https://xxxxxxxxxx.com/um/users/graphql
Custom headers:
accept: */*
Referer: http://localhost:7000/um
User-Agent: Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/81.0.4044.113 Safari/537.36
content-type: application/json
Authorization: Bearer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
User Defined Views:
F:\umUser-Agent.json
{"query":"query ModifiedUsers($lastCheck: String!, $from: Int = 0, $size: Int = 20) {\n modifiedUsers(lastCheck: $lastCheck, from: $from, size: $size) {\n users {\n id\n login\n createdBy\n updatedBy\n created\n updated\n principalADName\n systemAccount\n authType\n userDetail {\n firstName\n lastName\n email\n language {\n id\n name\n }\n country {\n id\n name\n }\n }\n userApplicationAttributesValues {\n userApplicationAttributeId\n value\n }\n authorizations {\n applicationInstance {\n id\n name\n }\n applicationHierarchies {\n applicationHierarchy {\n id\n label\n }\n attributeValues {\n id\n value\n valueName\n parentId\n deleted\n }\n }\n }\n }\n total\n }\n}","variables":"{\n \"lastCheck\": \"2025-02-04T17:10:09Z\",\n \"from\": 0,\n \"size\": 10\n}"}
==========================================================================================================================
In Bruno the connection can be setup and the data can be retrieved from the system without errors.
--------------------------------------------------------------------------------------------------------------------------
Query:
query ModifiedUsers($lastCheck: String!, $from: Int = 0, $size: Int = 20) {
modifiedUsers(lastCheck: $lastCheck, from: $from, size: $size) {
users {
id
login
createdBy
updatedBy
created
updated
principalADName
systemAccount
authType
userDetail {
firstName
lastName
email
language {
id
name
}
country {
id
name
}
}
userApplicationAttributesValues {
userApplicationAttributeId
value
}
authorizations {
applicationInstance {
id
name
}
applicationHierarchies {
applicationHierarchy {
id
label
}
attributeValues {
id
value
valueName
parentId
deleted
}
}
}
}
total
}
}
Variables
{
"lastCheck": "2025-02-04T17:10:09Z",
"from": 0,
"size": 10
}
Headers
--header 'accept: */*'
--header 'Referer: http://localhost:7000/um'
--header 'User-Agent: Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/81.0.4044.113 Safari/537.36'
--header 'content-type: application/json'
--header 'Authorization: Bearer xxxxxxxxxxxxxxx
--------------------------------------------------------------------------------------------------------------------------
Can somebody advise, please?
